Mikroelektronika d.o.o.
SKU: MIKROE-2066Clicker Board for CEC1702
Clicker Board for CEC1702
Couldn't load pickup availability

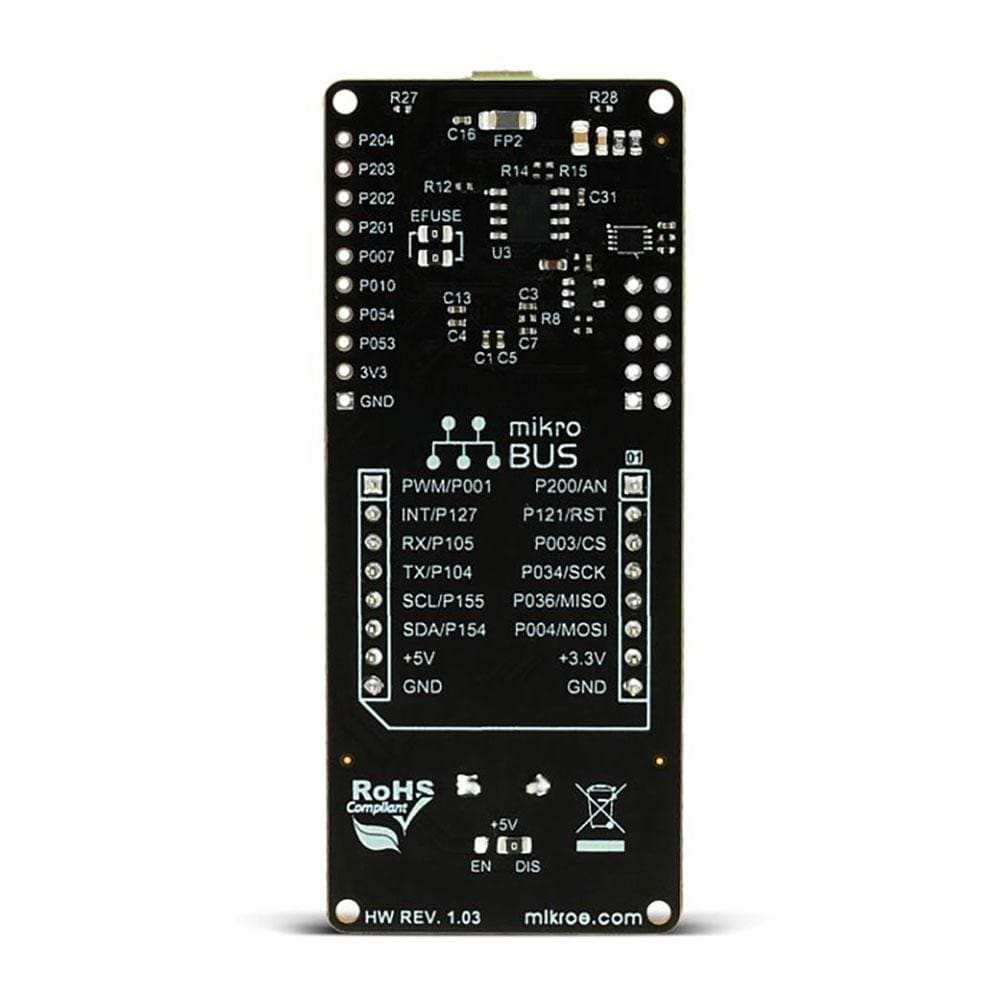

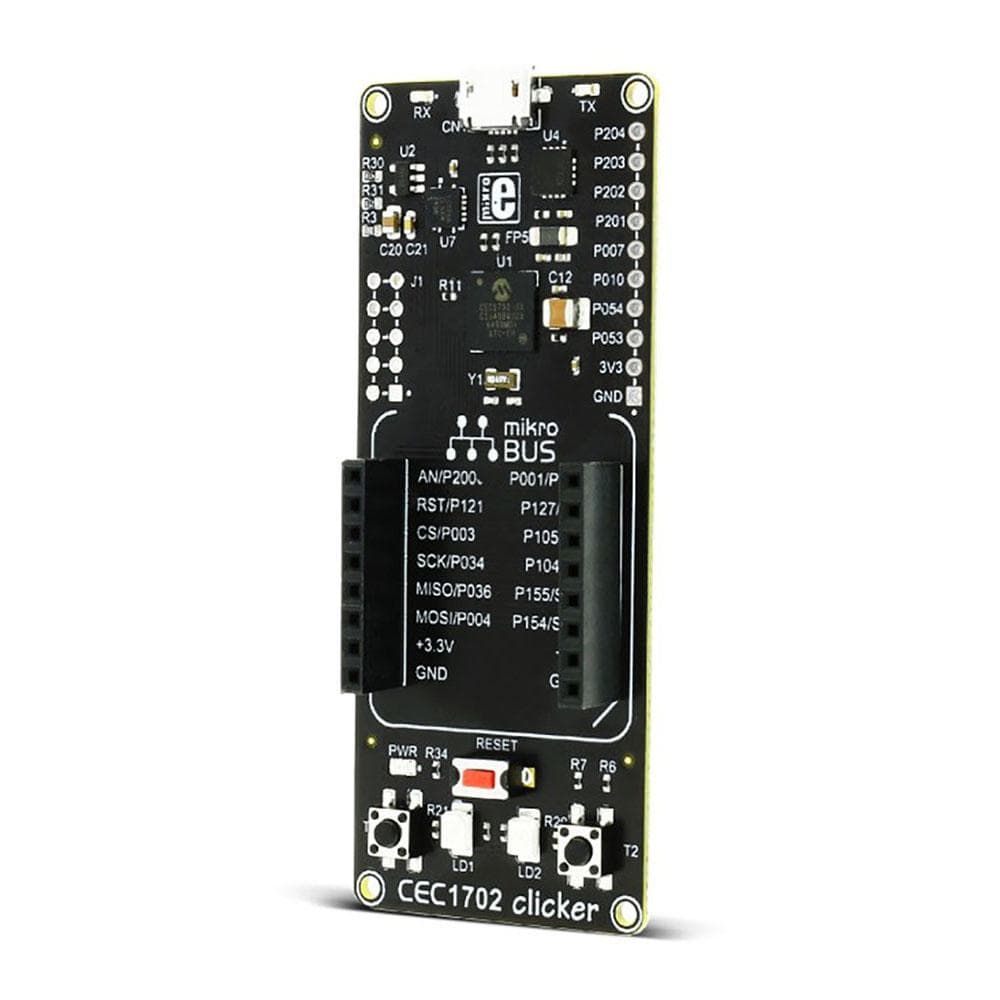

The CEC1702 Clicker Board™ is a compact development board with a MikroBUS socket for Click Board™ connectivity and Microchip's CEC1702 - a 32-bit ARM Cortex -M4 Processor Core, with strong cryptographic support.
CEC1702 Clicker Board™ - a Great Idea is just a Click Board™ Away..
The CEC1702 Clicker Board™ is a compact development board with a mikroBUS socket for Click Board™ connectivity and Microchips CEC1702 - a 32-bit ARM Cortex -M4 Processor Core, with strong cryptographic support.
Everything you Need to get Started
The board features everything you need to get started: a 32-bit CEC1702 microcontroller, USB-UART connector, two LEDs and push buttons, reset button and headers for interfacing with external electronics.
CEC1702 Microcontroller
The CEC1702 is a full-featured ARM Cortex-M4-based microcontroller with a complete hardware cryptography-enabled solution in a single package. This low-power but powerful, programmable 32-bit microcontroller offers easy-to-use encryption, authentication, private and public key capabilities and allows customer programming flexibility to minimise customer risk.
Strong Cryptographic Support
The CEC1702 provides a high level of security features, its a microcontroller with a complete hardware cryptography-enabled solution. It delivers a multi-dimensional defence against attacks, including: .
Pre-boot authentication of system firmware: Providing an immutable identity and a root of trust to ensure that the firmware is untouched and hasnt been corrupted.
Firmware update authentication: Verifying that the firmware update has not been corrupted and is from a trusted source.
Authentication of system critical commands: Attesting that any system-critical command is from a known source with authorisation to make the given change, preventing potentially devastating actions.
Protection of secrets with encryption: Safeguarding code and data to prevent theft or malicious activities.

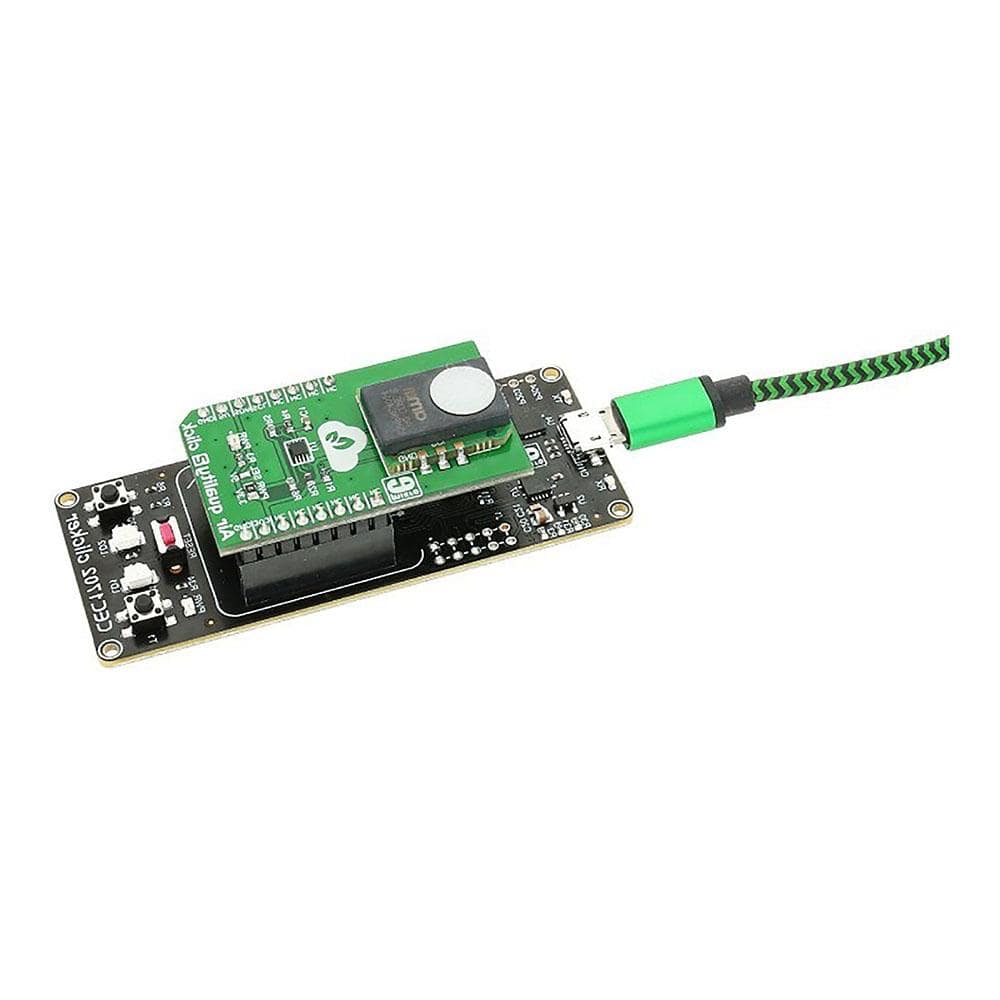

Hundreds of Possibilities with Click Board™s
Take advantage of the constantly expanding range of over 270 Click Board™s - the on-board mikroBUS socket allows you to add new functionality to your project. Each Click Board™ comes with a set of working example code.
Programming
CEC1702 Clicker Board™ is shipped without the Bootloader and the appropriate eFUSE settings (factory default). To be able to program the CEC1702 Clicker Board™, follow the steps explained on CEC1702 Specifics in the Help section of the ARM compilers, under "OTP Programming the CEC1702 device".
