SKU: SPY-BI-TAGTag Connect SPY‐BI‐TAG; MSP430 SPY‐BI‐WIRE to TC2030‐MCP Adapter
Tag Connect SPY‐BI‐TAG; MSP430 SPY‐BI‐WIRE to TC2030‐MCP Adapter
Couldn't load pickup availability

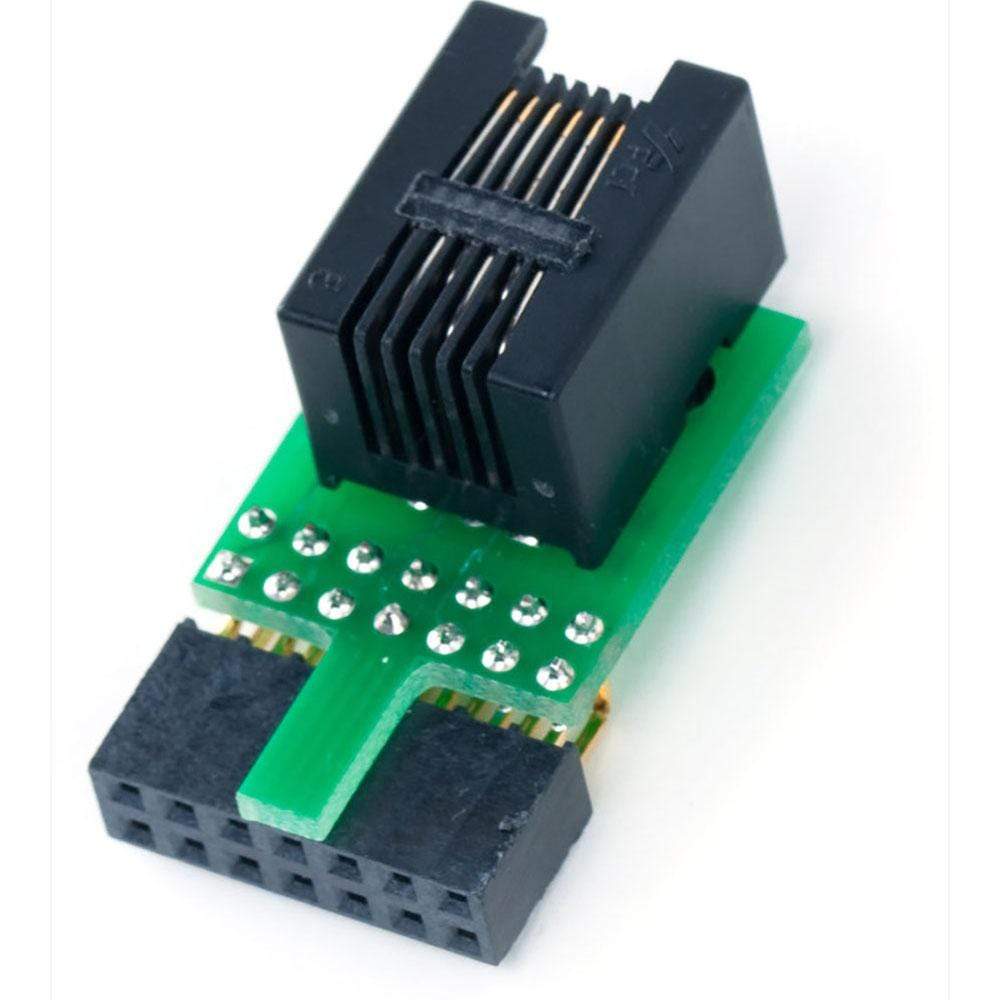

TC2030‐MCP to SPY‐BI‐WIRE adapter board which allows use of our Tag‐Connect TC2030‐MCP series Plug‐of‐Nails™ cables with later versions of TI’s MSP430 MCU that support the SPY‐BI‐WIRE (2‐Wire) JTAG interface.
The "SPY‐BI‐TAG" TC2030‐MCP to SPY‐BI‐WIRE adapter board which allows use of our Tag‐Connect TC2030‐MCP series Plug‐of‐Nails™ cables with later versions of TI's MSP430 MCU that support the SPY‐BI‐WIRE (2‐Wire) JTAG interface.
TI MSP‐FETU430 shown in one of the images with SPY‐BI‐TAG adapter board and TC2030‐MCP‐NL (no legs) cable – also works with TC2030‐MCP legged version cable. When your board real‐estate is at a premium, Tag‐Connect is the way to go!
The SPY-BI-TAG adapter can be fitted with the 330 Ohm fuse-blow protection resistor see SPY-BI-Tag-R1). The best (and safest) place for this resistor is on the adapter board, but some people (because they copy the confusing eval board schematics) put the 330 Ohm resistor on the target PCB. The resistor MUST be fitted either on the SPY-BI-TAG board, or on the target board but NOT both.
Note: Adapter only, MPS430, cable and evaluation board not included!
