SKU: MIKROE-1895GNSS 3 Click Board
GNSS 3 Click Board
Couldn't load pickup availability
Key Features
- MTK high sensitivity navigation engine. TTFF: 28 seconds (cold), 26s (warm), less than 1 (hot). Sensitivity: -165 dBm tracking; -160 dBm reacquisition; -146 dBm cold start
- Based on the SIMCom SIM33ELA standalone GNSS module with an integrated antenna
- Navigation devices based on GPS and GLONASS global positioning systems
- mikroBUS: UART Interface

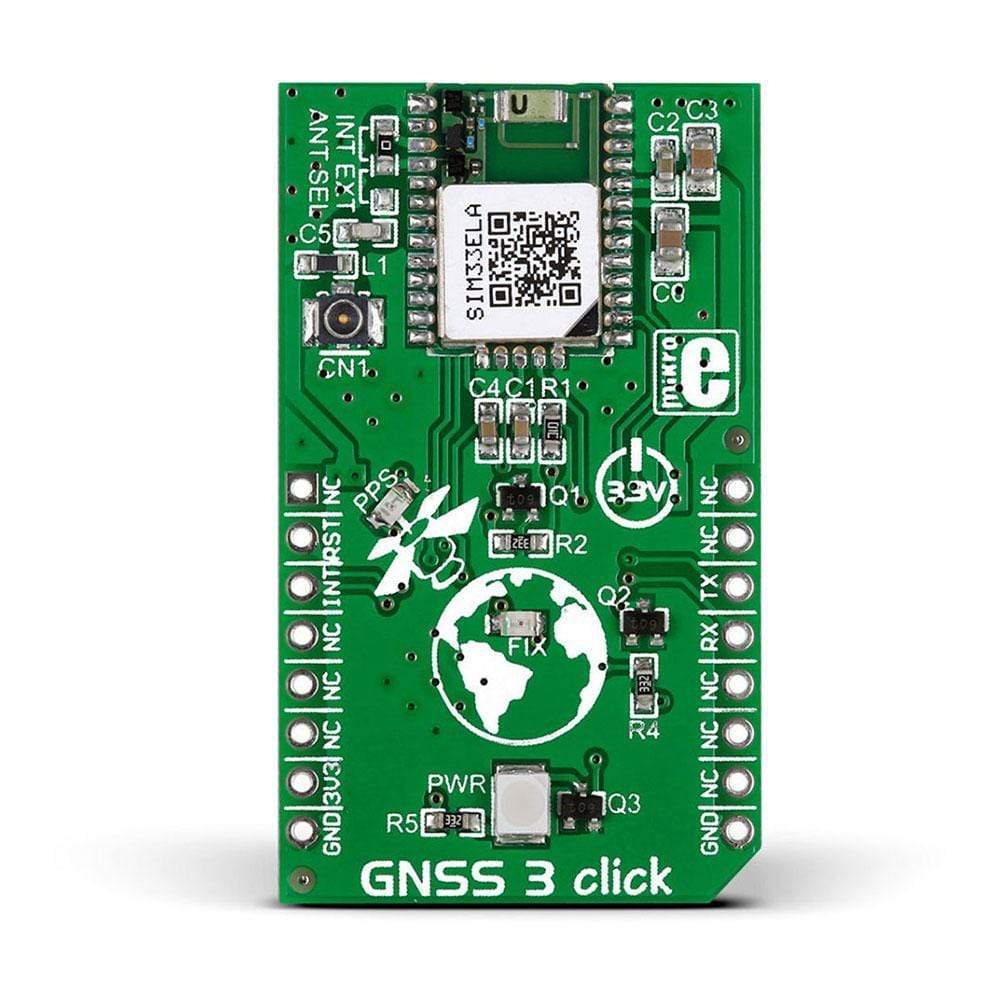

The GNSS 3 Click Board™ is based on SIMCom's SIM33ELA standalone GNSS module with an integrated antenna (and a connector for an external one).
The GNSS 3 Click Board™ carries SIMComs SIM33ELA standalone GNSS module with an integrated antenna (and a connector for an external one). GNSS stands for Global Navigation Satellite System, an umbrella term that describes both the United States GPS and the Russian GLONASS global positioning systems.
The SIM33ELA module has MTKs high sensitivity navigation engine. It features EPO orbit prediction, AGPS, SBAS ranging (WAAS, EGNOS, GAGAN, MSAS). GNSS3 Click Board™ communicates with the target MCU through mikroBUS UART pins (RX, TX), with additional functionality provided through RST and INT pins. The board uses a 3.3V power supply.
GNSS 3 Click Board
