SKU: MIKROE-4459EasyPIC v7a PIC Development Board
EasyPIC v7a PIC Development Board
Couldn't load pickup availability

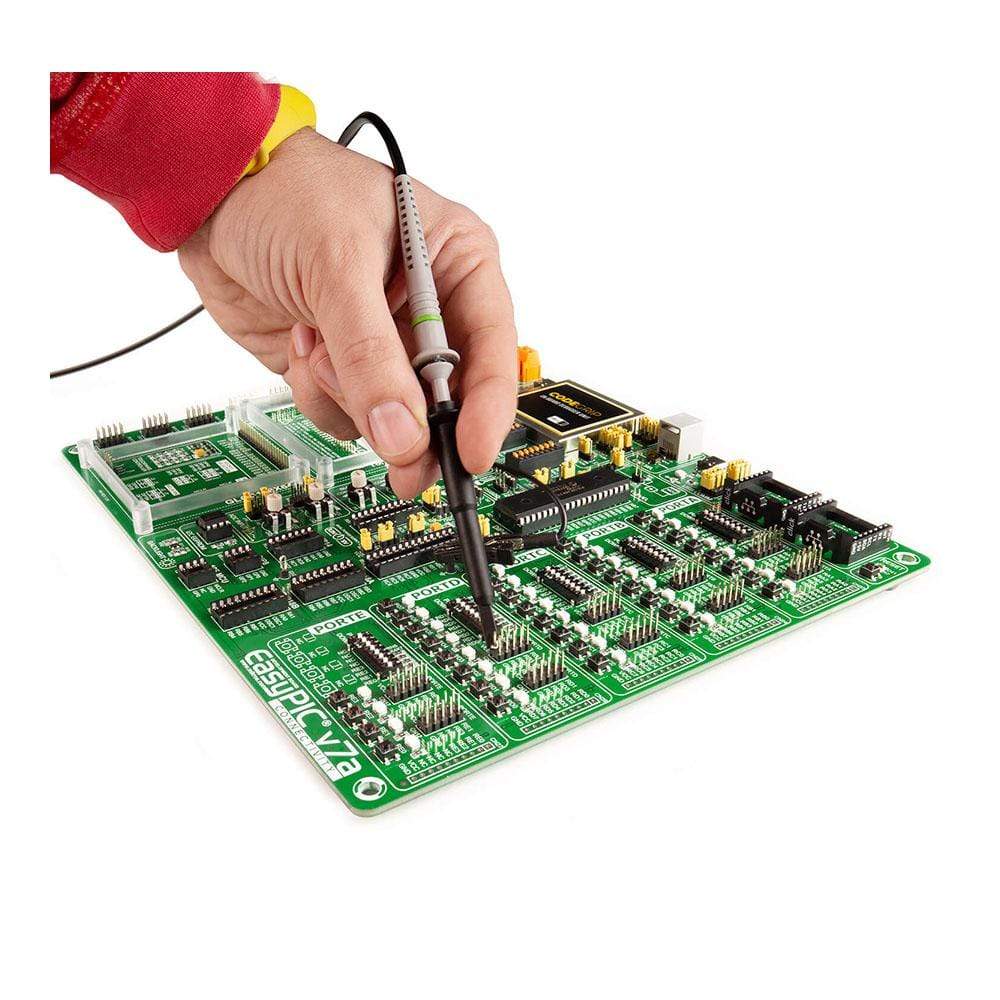

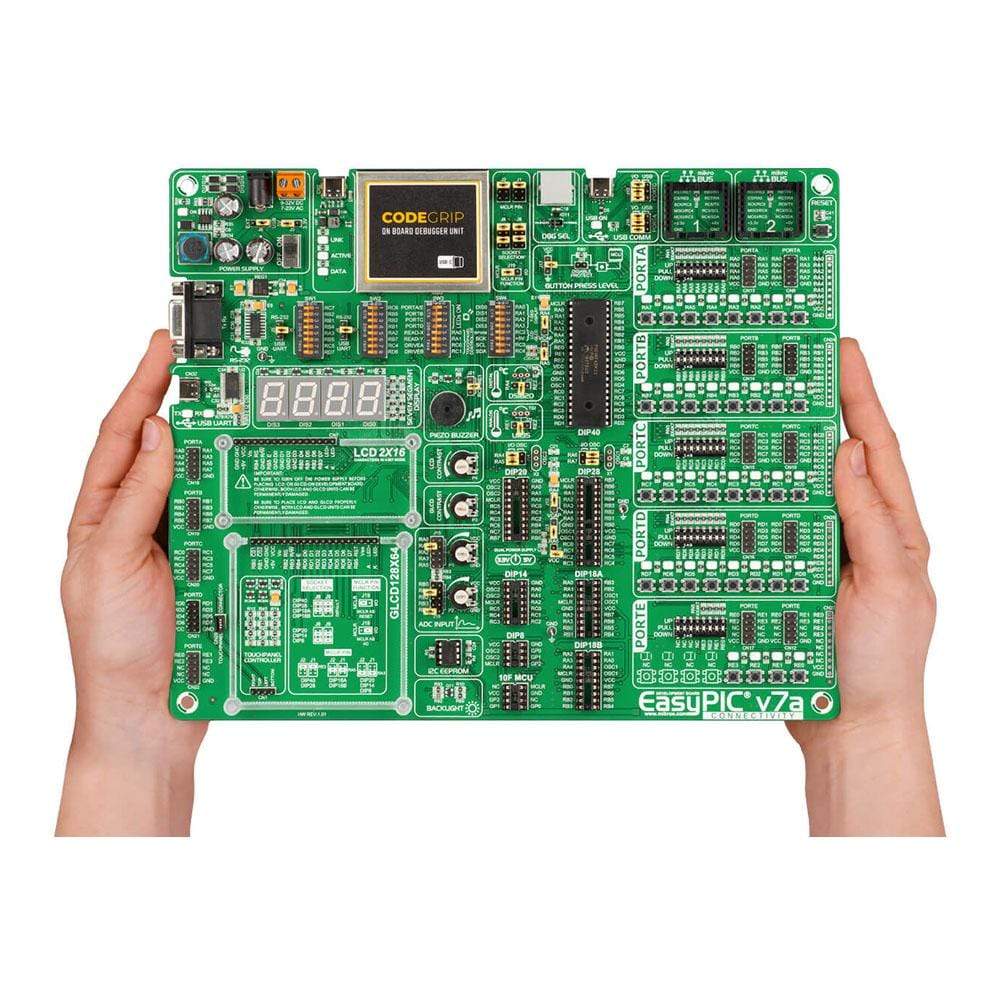

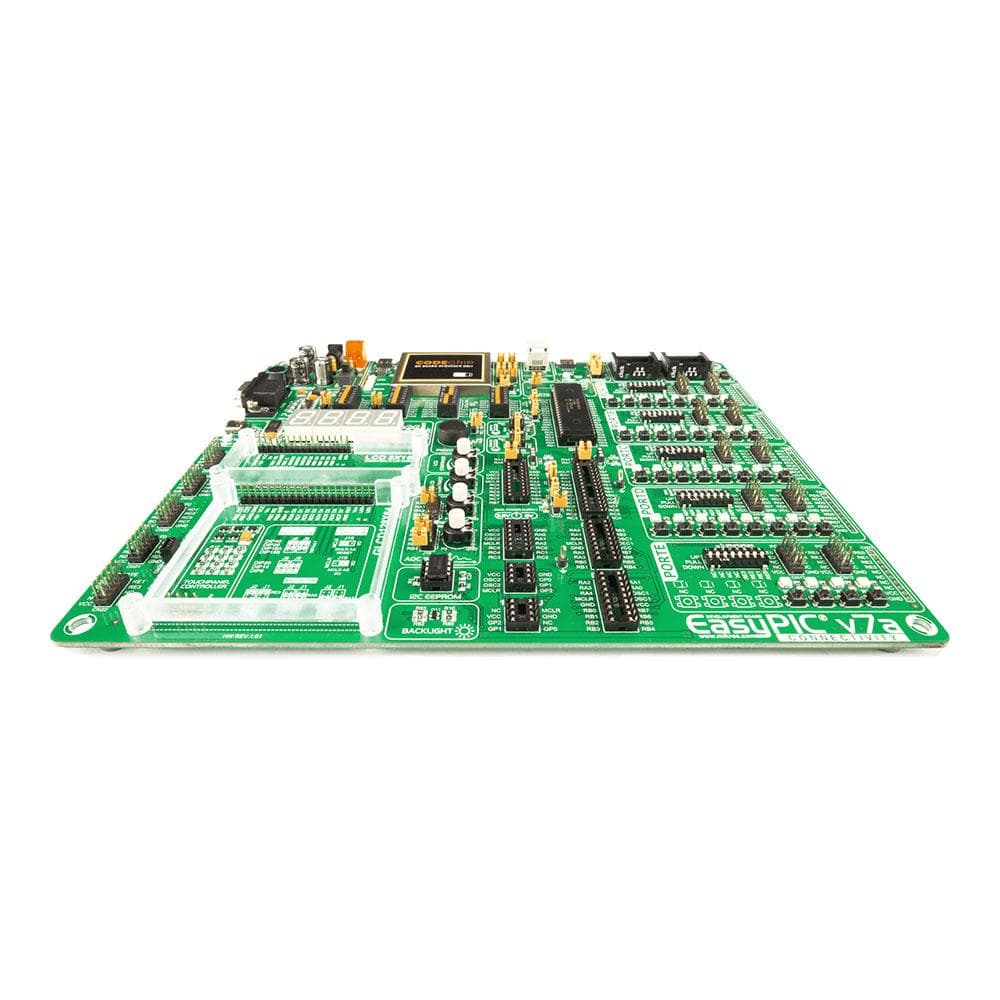

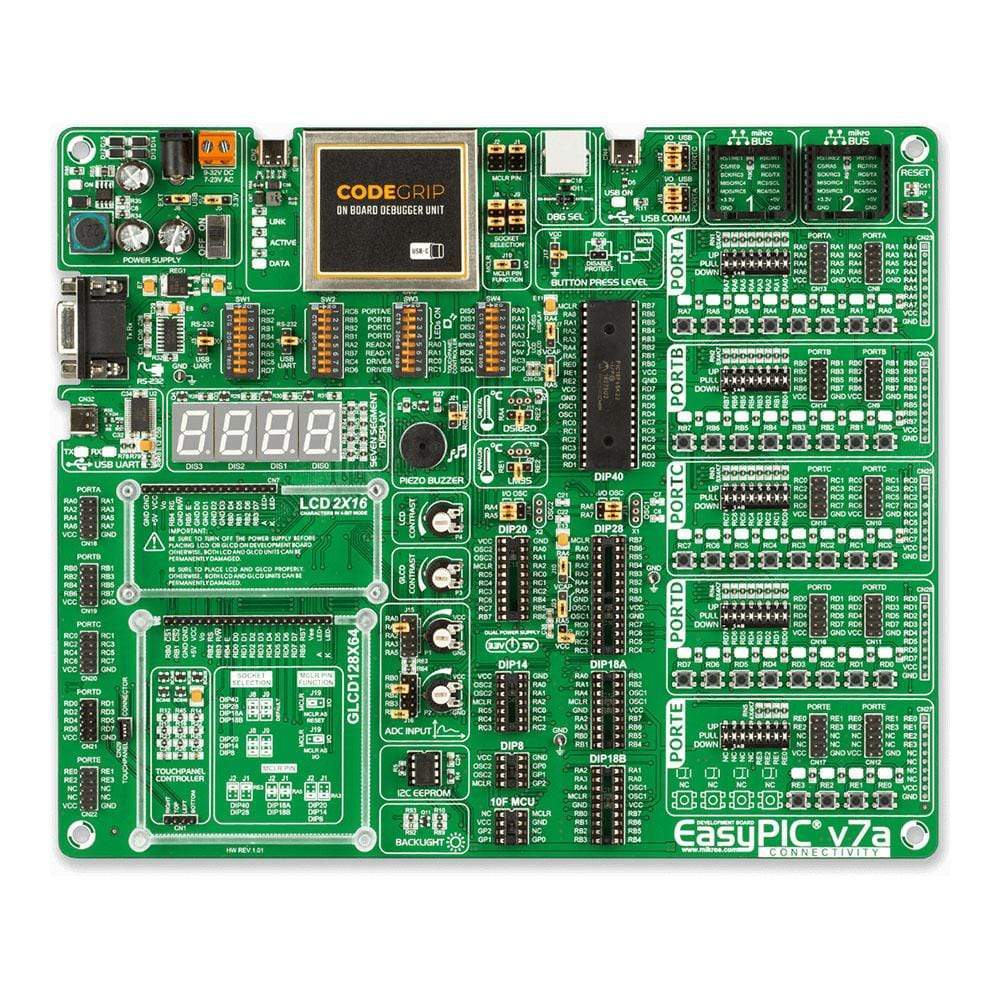

The EasyPIC v7a PIC Development Board is an enhanced version of the well-known EasyPIC v7 development board for PIC MCUs.
It has been upgraded to include the new CODEGRIP debugger and Programmer, which offers a new, fast USB Type C interface.
The EasyPIC v7a supports 3.3V and 5V microcontrollers in the standard DIP package.
EasyPIC v7a - A New Development Experience
|
CODEGRIP Onboard |
mikroBUS™Sockets |
Amazing Connectivity |
Dual Power Supply |
THE MOST FAMOUS PIC DEVELOPMENT BOARD
IN THE WORLD
EasyPIC is an old friend. Many of us made our first steps in the embedded world with EasyPIC. Today it has thousands of users: students, hobbyists, enthusiasts, and professionals. It's used in many schools and other educational institutions across the globe.
We asked ourselves what we can do to make such a great board even greater. And we equipped it with our revolutionary new programmer & debugger - CODEGRIP. We now present you with the new version 7a that brings so much more, and we hope that you will be thrilled with your new board, just as we are.
* Shown image is for illustration purposes only. Click boards™, LCD 2x16, and GLCD 128 x 64 shown in the image above
are available for purchase separately!
CodeGRIP Onboard
Powerful onboard CODEGRIP USB-C programmer and In-Circuit debugger can program and debug over 260 microcontrollers. You will need it, whether you are a professional or a beginner.
MikroBUS™ Sockets
Just plug in your Click board, and it's ready to work. We picked up a set of the most useful pins you need for development and made a pinout standard you will enjoy using.
Amazing Connectivity
EasyPIC v7a is all about connectivity. Having four different connectors for each port, you can connect accessory boards, sensors, and your custom electronics easier than ever before.
Dual Power Supply
EasyPIC v7a is among the few development boards which support both 3.3V and 5V microcontrollers. This feature greatly increases the number of supported MCUs. It's like having two boards instead of one!
CODEGRIP – Onboard Programmer
CODEGRIP is a unified solution, designed to perform programming and debugging tasks on a range of different microcontroller devices (MCUs) based on the Microchip PIC architecture. The USB-C connector offers improved performance and reliability, compared to traditionally used USB Type A/B connectors.
The powerful CODEGRIP module, an integrated programmer/debugger module supports a wide range of different 8-bit PIC MCUs, produced by Microchip. It allows in-place programming and debugging of all the supported MCUs, offering many useful programming/debugging options and seamless integration with the Mikroe software environment.
CODEGRIP Suite
The EasyPIC v7a Development Board is supported by a powerful CODEGRIP Suite, offering complete control over the EasyPIC v7a Development Board. It is used to intelligently manage programming and debugging tasks, and to configure various other options and settings, providing visual feedback through its clean and comprehensive Graphical User Interface (GUI). To better understand how to operate and configure the EasyPIC v7a Development Board and its integrated CODEGRIP module, a separate manual is provided on this link.
SUPPORTED MCUS(285)
| A | B | C | D | E | F | G | |
|---|---|---|---|---|---|---|---|
| 1 | PIC MCU | Pins | Flash (KB) | Clock (MHz) | RAM (Bytes) | CODEGRIP Programmer | CODEGRIP Debugger |
| 2 | PIC16LF1509 | 20 | 14 | 20 | 512 | Yes | Yes |
| 3 | PIC16F18326 | 14 | 28 | 32 | 2048 | Yes | Yes |
| 4 | PIC16LF1508 | 20 | 7 | 20 | 256 | Yes | Yes |
| 5 | PIC16F18325 | 14 | 14 | 32 | 1024 | Yes | Yes |
| 6 | PIC16F18877 | 40 | 56 | 32 | 4096 | Yes | Yes |
| 7 | PIC16F18324 | 14 | 7 | 32 | 512 | Yes | Yes |
| 8 | PIC16F18876 | 40 | 28 | 32 | 2048 | Yes | Yes |
| 9 | PIC16F18323 | 14 | 4 | 32 | 256 | Yes | Yes |
| 10 | PIC18F47K40 | 40 | 128 | 64 | 3728 | Yes | Yes |
| 11 | PIC16F18875 | 40 | 14 | 32 | 1024 | Yes | Yes |
| 12 | PIC16F18313 | 8 | 4 | 32 | 256 | Yes | Yes |
| 13 | PIC18F46K40 | 40 | 64 | 64 | 3728 | Yes | Yes |
| 14 | PIC16F18857 | 28 | 56 | 32 | 4096 | Yes | Yes |
| 15 | PIC16F1779 | 40 | 28 | 32 | 2048 | Yes | Yes |
| 16 | PIC18F45K40 | 40 | 32 | 64 | 2048 | Yes | Yes |
| 17 | PIC16F18856 | 28 | 28 | 32 | 2048 | Yes | Yes |
| 18 | PIC16F1778 | 28 | 28 | 32 | 2048 | Yes | Yes |
| 19 | PIC18F27K40 | 28 | 128 | 64 | 3728 | Yes | Yes |
| 20 | PIC16F18855 | 36 | 14 | 32 | 1024 | Yes | Yes |
| 21 | PIC16F1777 | 40 | 14 | 32 | 1024 | Yes | Yes |
| 22 | PIC18F26K40 | 28 | 64 | 64 | 3728 | Yes | Yes |
| 23 | PIC16F18854 | 28 | 7 | 32 | 512 | Yes | Yes |
| 24 | PIC16F1776 | 28 | 14 | 32 | 1024 | Yes | Yes |
| 25 | PIC18F25K40 | 28 | 32 | 64 | 2048 | Yes | Yes |
| 26 | PIC16F18346 | 20 | 28 | 32 | 2048 | Yes | Yes |
| 27 | PIC16F1773 | 28 | 7 | 32 | 512 | Yes | Yes |
| 28 | PIC18F24K40 | 28 | 16 | 64 | 1024 | Yes | Yes |
| 29 | PIC16F18345 | 20 | 14 | 32 | 1024 | Yes | Yes |
| 30 | PIC16F1509 | 20 | 14 | 20 | 512 | Yes | Yes |
| 31 | PIC16LF18313 | 8 | 4 | 32 | 256 | Yes | Yes |
| 32 | PIC16F18344 | 20 | 7 | 32 | 512 | Yes | Yes |
| 33 | PIC16F1508 | 20 | 17 | 20 | 256 | Yes | Yes |
| 34 | PIC16F15355 | 28 | 14 | 32 | 1024 | Yes | Yes |
| 35 | PIC16F15354 | 28 | 7 | 32 | 512 | Yes | Yes |
| 36 | PIC10LF322 | 6 | 1 | 16 | 64 | Yes | No |
| 37 | PIC10LF320 | 6 | 0 | 16 | 64 | Yes | No |
| 38 | PIC10F322 | 6 | 1 | 16 | 64 | Yes | No |
| 39 | PIC10F320 | 6 | 0 | 16 | 64 | Yes | No |
| 40 | PIC16F1574 | 14 | 7 | 8 | 512 | Yes | Yes |
| 41 | PIC16F1764 | 14 | 7 | 8 | 512 | Yes | Yes |
| 42 | PIC16F1575 | 14 | 14 | 8 | 1024 | Yes | Yes |
| 43 | PIC16F1765 | 14 | 14 | 8 | 1024 | Yes | Yes |
| 44 | PIC16F1578 | 20 | 7 | 8 | 512 | Yes | Yes |
| 45 | PIC16F1768 | 20 | 7 | 8 | 512 | Yes | Yes |
| 46 | PIC16F1579 | 20 | 14 | 8 | 1024 | Yes | Yes |
| 47 | PIC16F1769 | 20 | 14 | 8 | 1024 | Yes | Yes |
| 48 | PIC16F1503 | 14 | 4 | 20 | 128 | Yes | No |
| 49 | PIC16F1507 | 20 | 4 | 20 | 128 | Yes | No |
| 50 | PIC16F882 | 28 | 4 | 20 | 128 | Yes | Yes |
| 51 | PIC16F883 | 28 | 7 | 20 | 256 | Yes | Yes |
| 52 | PIC16F884 | 40 | 7 | 20 | 256 | Yes | Yes |
| 53 | PIC16F886 | 28 | 14 | 20 | 368 | Yes | Yes |
| 54 | PIC16F887 | 40 | 14 | 20 | 368 | Yes | Yes |
| 55 | PIC18F13K50 | 20 | 8 | 48 | 512 | Yes | Yes |
| 56 | PIC18F14K50 | 20 | 16 | 48 | 768 | Yes | Yes |
| 57 | PIC18F2221 | 28 | 4 | 40 | 512 | Yes | No |
| 58 | PIC18F2321 | 28 | 8 | 40 | 512 | Yes | No |
| 59 | PIC18F23K20 | 28 | 8 | 64 | 512 | Yes | No |
| 60 | PIC18F23K22 | 28 | 8 | 64 | 512 | Yes | Yes |
| 61 | PIC18F2410 | 28 | 16 | 40 | 768 | Yes | No |
| 62 | PIC18F2420 | 28 | 16 | 40 | 768 | Yes | No |
| 63 | PIC18F2423 | 28 | 16 | 40 | 768 | Yes | No |
| 64 | PIC18F2450 | 28 | 16 | 48 | 768 | Yes | No |
| 65 | PIC18F2455 | 28 | 24 | 48 | 2048 | Yes | No |
| 66 | PIC18F2458 | 28 | 24 | 48 | 2048 | Yes | No |
| 67 | PIC18F2480 | 28 | 16 | 40 | 768 | Yes | No |
| 68 | PIC18F24K20 | 28 | 16 | 64 | 768 | Yes | No |
| 69 | PIC18F24K22 | 28 | 16 | 64 | 768 | Yes | Yes |
| 70 | PIC18F2510 | 28 | 32 | 40 | 1536 | Yes | No |
| 71 | PIC18F2515 | 28 | 48 | 40 | 3968 | Yes | No |
| 72 | PIC18F2520 | 28 | 32 | 40 | 1536 | Yes | No |
| 73 | PIC18F2523 | 28 | 32 | 40 | 1536 | Yes | No |
| 74 | PIC18F2525 | 28 | 48 | 40 | 3968 | Yes | No |
| 75 | PIC18F2550 | 28 | 32 | 48 | 2048 | Yes | No |
| 76 | PIC18F2553 | 28 | 32 | 48 | 2048 | Yes | No |
| 77 | PIC18F2580 | 28 | 32 | 40 | 1536 | Yes | No |
| 78 | PIC18F2585 | 28 | 48 | 40 | 3328 | Yes | No |
| 79 | PIC18F25K20 | 28 | 32 | 64 | 1536 | Yes | No |
| 80 | PIC18F25K22 | 28 | 32 | 64 | 1536 | Yes | Yes |
| 81 | PIC18F25K80 | 28 | 32 | 64 | 3648 | Yes | No |
| 82 | PIC18F2610 | 28 | 64 | 40 | 3968 | Yes | No |
| 83 | PIC18F2620 | 28 | 64 | 40 | 3968 | Yes | No |
| 84 | PIC18F2680 | 28 | 64 | 40 | 3328 | Yes | No |
| 85 | PIC18F2682 | 28 | 80 | 40 | 3328 | Yes | No |
| 86 | PIC18F2685 | 28 | 96 | 40 | 3328 | Yes | No |
| 87 | PIC18F26K20 | 28 | 64 | 64 | 3936 | Yes | No |
| 88 | PIC18F26K22 | 28 | 64 | 64 | 3896 | Yes | Yes |
| 89 | PIC18F26K80 | 28 | 64 | 48 | 3648 | Yes | No |
| 90 | PIC18F4221 | 40 | 4 | 40 | 512 | Yes | No |
| 91 | PIC18F4321 | 40 | 8 | 40 | 512 | Yes | No |
| 92 | PIC18F43K20 | 40 | 8 | 64 | 512 | Yes | No |
| 93 | PIC18F43K22 | 40 | 8 | 64 | 512 | Yes | Yes |
| 94 | PIC18F4410 | 40 | 16 | 40 | 768 | Yes | No |
| 95 | PIC18F4420 | 40 | 16 | 40 | 768 | Yes | No |
| 96 | PIC18F4423 | 40 | 16 | 40 | 768 | Yes | No |
| 97 | PIC18F4450 | 40 | 16 | 48 | 768 | Yes | No |
| 98 | PIC18F4455 | 40 | 24 | 48 | 2048 | Yes | No |
| 99 | PIC18F4458 | 40 | 24 | 48 | 2048 | Yes | No |
| 100 | PIC18F4480 | 40 | 16 | 40 | 768 | Yes | No |
| 101 | PIC18F44K20 | 40 | 16 | 64 | 768 | Yes | No |
| 102 | PIC18F44K22 | 40 | 16 | 64 | 768 | Yes | Yes |
| 103 | PIC18F4510 | 40 | 32 | 40 | 1536 | Yes | No |
| 104 | PIC18F4515 | 40 | 48 | 40 | 3968 | Yes | No |
| 105 | PIC18F4520 | 40 | 32 | 40 | 1536 | Yes | No |
| 106 | PIC18F4523 | 40 | 32 | 40 | 1536 | Yes | No |
| 107 | PIC18F4525 | 40 | 48 | 40 | 3968 | Yes | No |
| 108 | PIC18F4550 | 40 | 32 | 48 | 2048 | Yes | No |
| 109 | PIC18F4553 | 40 | 32 | 48 | 2048 | Yes | No |
| 110 | PIC18F4580 | 40 | 32 | 40 | 1536 | Yes | No |
| 111 | PIC18F4585 | 40 | 48 | 40 | 3328 | Yes | No |
| 112 | PIC18F45K20 | 40 | 32 | 64 | 1536 | Yes | No |
| 113 | PIC18F45K22 | 40 | 32 | 64 | 1536 | Yes | Yes |
| 114 | PIC18F45K80 | 44 | 32 | 64 | 3648 | Yes | No |
| 115 | PIC18F4610 | 40 | 64 | 40 | 3968 | Yes | No |
| 116 | PIC18F4620 | 40 | 64 | 40 | 3968 | Yes | No |
| 117 | PIC18F4680 | 40 | 64 | 40 | 3328 | Yes | No |
| 118 | PIC18F4682 | 40 | 80 | 40 | 3328 | Yes | No |
| 119 | PIC18F4685 | 40 | 96 | 40 | 3328 | Yes | No |
| 120 | PIC18F46K20 | 40 | 64 | 64 | 3936 | Yes | No |
| 121 | PIC18F46K22 | 40 | 64 | 64 | 3896 | Yes | Yes |
| 122 | PIC18F46K80 | 44 | 64 | 64 | 3648 | Yes | No |
| 123 | PIC18LF13K50 | 20 | 8 | 48 | 512 | Yes | Yes |
| 124 | PIC18LF14K50 | 20 | 16 | 48 | 768 | Yes | Yes |
| 125 | PIC18LF23K22 | 28 | 8 | 64 | 512 | Yes | Yes |
| 126 | PIC18LF24K22 | 28 | 16 | 64 | 768 | Yes | Yes |
| 127 | PIC18LF25K22 | 28 | 32 | 16 | 1536 | Yes | Yes |
| 128 | PIC18LF25K80 | 28 | 32 | 64 | 3648 | Yes | No |
| 129 | PIC18LF26K22 | 28 | 64 | 64 | 3896 | Yes | Yes |
| 130 | PIC18LF26K80 | 28 | 64 | 64 | 3648 | Yes | No |
| 131 | PIC18LF43K22 | 40 | 8 | 64 | 512 | Yes | Yes |
| 132 | PIC18LF44K22 | 40 | 16 | 64 | 768 | Yes | Yes |
| 133 | PIC18LF45K22 | 40 | 32 | 64 | 1536 | Yes | Yes |
| 134 | PIC18LF45K80 | 44 | 32 | 64 | 3648 | Yes | No |
| 135 | PIC18LF46K22 | 40 | 64 | 64 | 3896 | Yes | Yes |
| 136 | PIC18LF46K80 | 44 | 64 | 64 | 3648 | Yes | No |
| 137 | PIC12F1501 | 8 | 2 | 20 | 64 | Yes | No |
| 138 | PIC16F1455 | 14 | 14 | 48 | 1024 | Yes | Yes |
| 139 | PIC16F1459 | 20 | 14 | 48 | 1024 | Yes | Yes |
| 140 | PIC16LF1455 | 14 | 14 | 48 | 1024 | Yes | Yes |
| 141 | PIC16LF1459 | 20 | 14 | 48 | 1024 | Yes | Yes |
| 142 | PIC16LF1503 | 14 | 4 | 20 | 128 | Yes | No |
| 143 | PIC16LF1507 | 20 | 4 | 20 | 128 | Yes | No |
| 144 | PIC18F24K50 | 28 | 16 | 48 | 2048 | Yes | Yes |
| 145 | PIC18F25K50 | 28 | 32 | 48 | 2048 | Yes | Yes |
| 146 | PIC18F45K50 | 40 | 32 | 48 | 2048 | Yes | Yes |
| 147 | PIC18LF25K50 | 28 | 32 | 48 | 2048 | Yes | Yes |
| 148 | PIC12F1571 | 8 | 2 | 32 | 128 | Yes | Yes |
| 149 | PIC12F1572 | 8 | 4 | 32 | 256 | Yes | Yes |
| 150 | PIC16LF1718 | 28 | 28 | 32 | 2048 | Yes | Yes |
| 151 | PIC12LF1572 | 8 | 4 | 32 | 256 | Yes | Yes |
| 152 | PIC16F1789 | 40 | 28 | 32 | 2048 | Yes | Yes |
| 153 | PIC16LF1454 | 14 | 14 | 48 | 1024 | Yes | Yes |
| 154 | PIC16F1705 | 14 | 14 | 32 | 1024 | Yes | Yes |
| 155 | PIC16LF1703 | 14 | 4 | 32 | 256 | Yes | Yes |
| 156 | PIC16F1713 | 28 | 7 | 32 | 512 | Yes | Yes |
| 157 | PIC16LF1708 | 20 | 7 | 32 | 512 | Yes | Yes |
| 158 | PIC18LF24K50 | 28 | 16 | 48 | 2048 | Yes | Yes |
| 159 | PIC16F1718 | 28 | 28 | 32 | 2048 | Yes | Yes |
| 160 | PIC16F1719 | 40 | 28 | 32 | 2048 | Yes | Yes |
| 161 | PIC16LF1717 | 40 | 14 | 32 | 1024 | Yes | Yes |
| 162 | PIC12LF1571 | 8 | 2 | 32 | 128 | Yes | Yes |
| 163 | PIC16F1788 | 28 | 28 | 32 | 2048 | Yes | Yes |
| 164 | PIC16F1704 | 14 | 7 | 32 | 512 | Yes | Yes |
| 165 | PIC16LF1613 | 14 | 4 | 32 | 256 | Yes | Yes |
| 166 | PIC16F1709 | 20 | 14 | 32 | 1024 | Yes | Yes |
| 167 | PIC16LF1707 | 20 | 4 | 32 | 256 | Yes | Yes |
| 168 | PIC16LF1713 | 28 | 7 | 32 | 512 | Yes | Yes |
| 169 | PIC16LF1716 | 28 | 14 | 32 | 1024 | Yes | Yes |
| 170 | PIC12LF1501 | 8 | 2 | 20 | 64 | Yes | No |
| 171 | PIC16F1454 | 14 | 14 | 48 | 1024 | Yes | Yes |
| 172 | PIC16LF1789 | 40 | 28 | 32 | 2048 | Yes | Yes |
| 173 | PIC16F1703 | 14 | 4 | 32 | 256 | Yes | Yes |
| 174 | PIC16F1708 | 20 | 7 | 32 | 512 | Yes | Yes |
| 175 | PIC16LF1705 | 14 | 14 | 32 | 1024 | Yes | Yes |
| 176 | PIC16F1717 | 40 | 14 | 32 | 1024 | Yes | Yes |
| 177 | PIC18LF45K50 | 40 | 32 | 48 | 2048 | Yes | Yes |
| 178 | PIC12F1612 | 8 | 4 | 32 | 256 | Yes | Yes |
| 179 | PIC16LF1719 | 40 | 28 | 32 | 2048 | Yes | Yes |
| 180 | PIC12LF1612 | 8 | 4 | 32 | 256 | Yes | Yes |
| 181 | PIC16LF1788 | 28 | 28 | 32 | 2048 | Yes | Yes |
| 182 | PIC16F1613 | 14 | 4 | 32 | 256 | Yes | Yes |
| 183 | PIC16F1707 | 20 | 4 | 32 | 256 | Yes | Yes |
| 184 | PIC16LF1704 | 14 | 7 | 32 | 512 | Yes | Yes |
| 185 | PIC16F1716 | 28 | 14 | 32 | 1024 | Yes | Yes |
| 186 | PIC16LF1709 | 20 | 14 | 32 | 1024 | Yes | Yes |
| 187 | PIC16F1614 | 14 | 7 | 8 | 512 | Yes | Yes |
| 188 | PIC16F1615 | 14 | 14 | 8 | 1024 | Yes | Yes |
| 189 | PIC16F1618 | 20 | 7 | 8 | 512 | Yes | Yes |
| 190 | PIC16F1619 | 20 | 14 | 8 | 1024 | Yes | Yes |
| 191 | PIC16LF18346 | 20 | 28 | 32 | 2048 | Yes | Yes |
| 192 | PIC16LF18345 | 20 | 14 | 32 | 1024 | Yes | Yes |
| 193 | PIC16LF18344 | 20 | 7 | 32 | 512 | Yes | Yes |
| 194 | PIC16LF18326 | 14 | 28 | 32 | 2048 | Yes | Yes |
| 195 | PIC16LF18325 | 14 | 14 | 32 | 1024 | Yes | Yes |
| 196 | PIC16LF18324 | 14 | 7 | 32 | 512 | Yes | Yes |
| 197 | PIC16LF18323 | 14 | 4 | 32 | 256 | Yes | Yes |
| 198 | PIC16LF18877 | 40 | 56 | 32 | 4096 | Yes | Yes |
| 199 | PIC16LF18876 | 40 | 28 | 32 | 2048 | Yes | Yes |
| 200 | PIC16LF18875 | 40 | 14 | 32 | 1024 | Yes | Yes |
| 201 | PIC16LF18857 | 28 | 56 | 32 | 4096 | Yes | Yes |
| 202 | PIC16LF18856 | 28 | 28 | 32 | 2048 | Yes | Yes |
| 203 | PIC16LF18855 | 28 | 14 | 32 | 1024 | Yes | Yes |
| 204 | PIC16LF18854 | 28 | 7 | 32 | 512 | Yes | Yes |
| 205 | PIC18LF47K40 | 40 | 128 | 64 | 3728 | Yes | Yes |
| 206 | PIC18LF46K40 | 40 | 64 | 64 | 3728 | Yes | Yes |
| 207 | PIC18LF45K40 | 40 | 32 | 64 | 2048 | Yes | Yes |
| 208 | PIC18LF27K40 | 28 | 128 | 64 | 3728 | Yes | Yes |
| 209 | PIC18LF26K40 | 28 | 64 | 64 | 3728 | Yes | Yes |
| 210 | PIC18LF25K40 | 28 | 32 | 64 | 2048 | Yes | Yes |
| 211 | PIC18LF24K40 | 28 | 16 | 64 | 1024 | Yes | Yes |
| 212 | PIC16LF1779 | 40 | 28 | 32 | 2048 | Yes | Yes |
| 213 | PIC16LF1778 | 28 | 28 | 32 | 2048 | Yes | Yes |
| 214 | PIC16LF1777 | 40 | 14 | 32 | 1024 | Yes | Yes |
| 215 | PIC16LF1776 | 28 | 14 | 32 | 1024 | Yes | Yes |
| 216 | PIC16LF1773 | 28 | 7 | 32 | 512 | Yes | Yes |
| 217 | PIC16LF1614 | 14 | 7 | 8 | 512 | Yes | Yes |
| 218 | PIC16LF1615 | 14 | 14 | 8 | 1024 | Yes | Yes |
| 219 | PIC16LF1618 | 20 | 7 | 8 | 512 | Yes | Yes |
| 220 | PIC16LF1619 | 20 | 14 | 8 | 1024 | Yes | Yes |
| 221 | PIC16F15313 | 8 | 3 | 32 | 256 | Yes | Yes |
| 222 | PIC16F15323 | 14 | 3 | 32 | 256 | Yes | Yes |
| 223 | PIC16F15324 | 14 | 7 | 32 | 512 | Yes | Yes |
| 224 | PIC16F15325 | 14 | 14 | 32 | 1024 | Yes | Yes |
| 225 | PIC16F15344 | 20 | 7 | 32 | 512 | Yes | Yes |
| 226 | PIC16F15345 | 20 | 14 | 32 | 1024 | Yes | Yes |
| 227 | PIC16F15356 | 28 | 28 | 32 | 2048 | Yes | Yes |
| 228 | PIC16F15375 | 40 | 14 | 32 | 1024 | Yes | Yes |
| 229 | PIC16F15376 | 40 | 28 | 32 | 2048 | Yes | Yes |
| 230 | PIC16F19155 | 28 | 14 | 32 | 1024 | Yes | Yes |
| 231 | PIC16F19156 | 28 | 28 | 32 | 2048 | Yes | Yes |
| 232 | PIC16F19175 | 40 | 14 | 32 | 1024 | Yes | Yes |
| 233 | PIC16F19176 | 40 | 28 | 32 | 2048 | Yes | Yes |
| 234 | PIC16LF15313 | 8 | 3 | 32 | 256 | Yes | Yes |
| 235 | PIC16LF15323 | 14 | 3 | 32 | 256 | Yes | Yes |
| 236 | PIC16LF15324 | 14 | 7 | 32 | 512 | Yes | Yes |
| 237 | PIC16LF15325 | 14 | 14 | 32 | 1024 | Yes | Yes |
| 238 | PIC16LF15344 | 20 | 7 | 32 | 512 | Yes | Yes |
| 239 | PIC16LF15345 | 20 | 14 | 32 | 1024 | Yes | Yes |
| 240 | PIC16LF15354 | 28 | 7 | 32 | 512 | Yes | Yes |
| 241 | PIC16LF15355 | 28 | 14 | 32 | 1024 | Yes | Yes |
| 242 | PIC16LF15356 | 28 | 28 | 32 | 2048 | Yes | Yes |
| 243 | PIC16LF15375 | 40 | 14 | 32 | 1024 | Yes | Yes |
| 244 | PIC16LF15376 | 40 | 28 | 32 | 2048 | Yes | Yes |
| 245 | PIC16LF1574 | 28 | 14 | 32 | 1024 | Yes | Yes |
| 246 | PIC16LF1575 | 28 | 28 | 32 | 2048 | Yes | Yes |
| 247 | PIC16LF1578 | 40 | 14 | 32 | 1024 | Yes | Yes |
| 248 | PIC16LF1579 | 40 | 28 | 32 | 2048 | Yes | Yes |
| 249 | PIC16LF1764 | 14 | 7 | 32 | 512 | Yes | Yes |
| 250 | PIC16LF1765 | 14 | 14 | 32 | 1024 | Yes | Yes |
| 251 | PIC16LF1768 | 20 | 7 | 32 | 512 | Yes | Yes |
| 252 | PIC16LF1769 | 20 | 14 | 32 | 1024 | Yes | Yes |
| 253 | PIC16LF19155 | 28 | 14 | 32 | 1024 | Yes | Yes |
| 254 | PIC16LF19156 | 28 | 28 | 32 | 2048 | Yes | Yes |
| 255 | PIC16LF19175 | 40 | 14 | 32 | 1024 | Yes | Yes |
| 256 | PIC16LF19176 | 40 | 28 | 32 | 2048 | Yes | Yes |
| 257 | PIC18F24K42 | 28 | 16 | 64 | 1024 | Yes | Yes |
| 258 | PIC18F25K42 | 28 | 32 | 64 | 2048 | Yes | Yes |
| 259 | PIC18F26K42 | 28 | 64 | 64 | 4096 | Yes | Yes |
| 260 | PIC18F27K42 | 28 | 128 | 64 | 8192 | Yes | Yes |
| 261 | PIC18F45K42 | 40 | 32 | 64 | 2048 | Yes | Yes |
| 262 | PIC18F46K42 | 40 | 64 | 64 | 4096 | Yes | Yes |
| 263 | PIC18F47K42 | 40 | 128 | 64 | 8192 | Yes | Yes |
| 264 | PIC18LF24K42 | 28 | 16 | 64 | 1024 | Yes | Yes |
| 265 | PIC18LF25K42 | 28 | 32 | 64 | 2048 | Yes | Yes |
| 266 | PIC18LF26K42 | 28 | 64 | 64 | 4096 | Yes | Yes |
| 267 | PIC18LF27K42 | 28 | 128 | 64 | 8192 | Yes | Yes |
| 268 | PIC18LF45K42 | 40 | 32 | 64 | 2048 | Yes | Yes |
| 269 | PIC18LF46K42 | 40 | 64 | 64 | 4096 | Yes | Yes |
| 270 | PIC18LF47K42 | 40 | 128 | 64 | 8192 | Yes | Yes |
| 271 | PIC16F18426 | 14 | 28 | 8 | 2048 | Yes | Yes |
| 272 | PIC16F18446 | 20 | 28 | 8 | 2048 | Yes | Yes |
| 273 | PIC16LF18426 | 14 | 28 | 8 | 2048 | Yes | Yes |
| 274 | PIC16LF18446 | 20 | 28 | 8 | 2048 | Yes | Yes |
| 275 | PIC18F25Q43 | 0 | 32 | 64 | 2048 | Yes | Yes |
| 276 | PIC18F26Q43 | 0 | 64 | 64 | 4096 | Yes | Yes |
| 277 | PIC18F27Q43 | 0 | 128 | 64 | 8192 | Yes | Yes |
| 278 | PIC18F45Q43 | 0 | 32 | 64 | 2048 | Yes | Yes |
| 279 | PIC18F46Q43 | 0 | 64 | 64 | 4096 | Yes | Yes |
| 280 | PIC18F47Q43 | 0 | 128 | 64 | 8192 | Yes | Yes |
| 281 | PIC18F26Q10 | 0 | 64 | 64 | 3615 | Yes | Yes |
| 282 | PIC18F27Q10 | 0 | 128 | 64 | 3615 | Yes | Yes |
| 283 | PIC18F46Q10 | 0 | 64 | 64 | 3615 | Yes | Yes |
| 284 | PIC18F25Q10 | 0 | 32 | 64 | 2048 | Yes | Yes |
| 285 | PIC18F45Q10 | 0 | 32 | 64 | 2048 | Yes | Yes |
| 286 | PIC18F47Q10 | 0 | 128 | 64 | 3615 | Yes | Yes |
What's Onboard?
The complete board area is divided into several sections, arranged so that all the related components, switches, buttons, indicators, and connectors are logically positioned and grouped together.
Product Specification
| Type | 7th Generation |
| Architecture | PIC (8-bit) |
| Programming | USB |
| Silicon Vendor | Microchip |
| MCU Socket | DIP |
| mikroBUS No. | 2 |
| Supply Voltage | USB,External |
| Category | 7th Generation |
Fast, intuitive and professional.
Multi-architecture.
Multi-language.
Cross-platform.
The productive cross-platform integrated development environment with smart editing support and built-in graphical designer. Necto Studio makes application development rapid and comfortable. Write once – deploy anywhere. Shape the future of the embedded world with ease.
CODEGRIP PLUGIN FOR
MPLAB® X IDE MODULE
CODEGRIP plugin for MPLAB® X IDE enhances capabilities of Microchip's integrated development environment, adding functionality for communicating with CODEGRIP, Mikroe's programming/debug module.
MPLAB®X IDE
GALLERY
CODEGRIP Programmer/Debugger
DIP Sockets
Buzzer
mikroBUS™ Sockets
Additional GND
Input/Outputs
EasyPIC v7a Development Board
What's In The Package?
EasyPIC v7a PIC Development Board
Frequently Asked Questions
Have a Question?
Be the first to ask a question about this.
