Stepper 20 Click Board

2-Phase Bipolar Stepping Motor Driver

Product variants

£31.20 inc VAT

£26.00 exc VAT

£31.20 inc VAT

£26.00 exc VAT

Sale Sold out

Shipping calculated at checkout.

Order NOW to ship within 10 working days

Quantity

Key Features

Low power consumption, capable of controlling one bipolar stepping motor, PWM controlled constant-current drive, operational in full, half, quarter, 1/8, 1/16, and 1/32 step resolutions, selectable decay mode, anomaly detection functions, and more

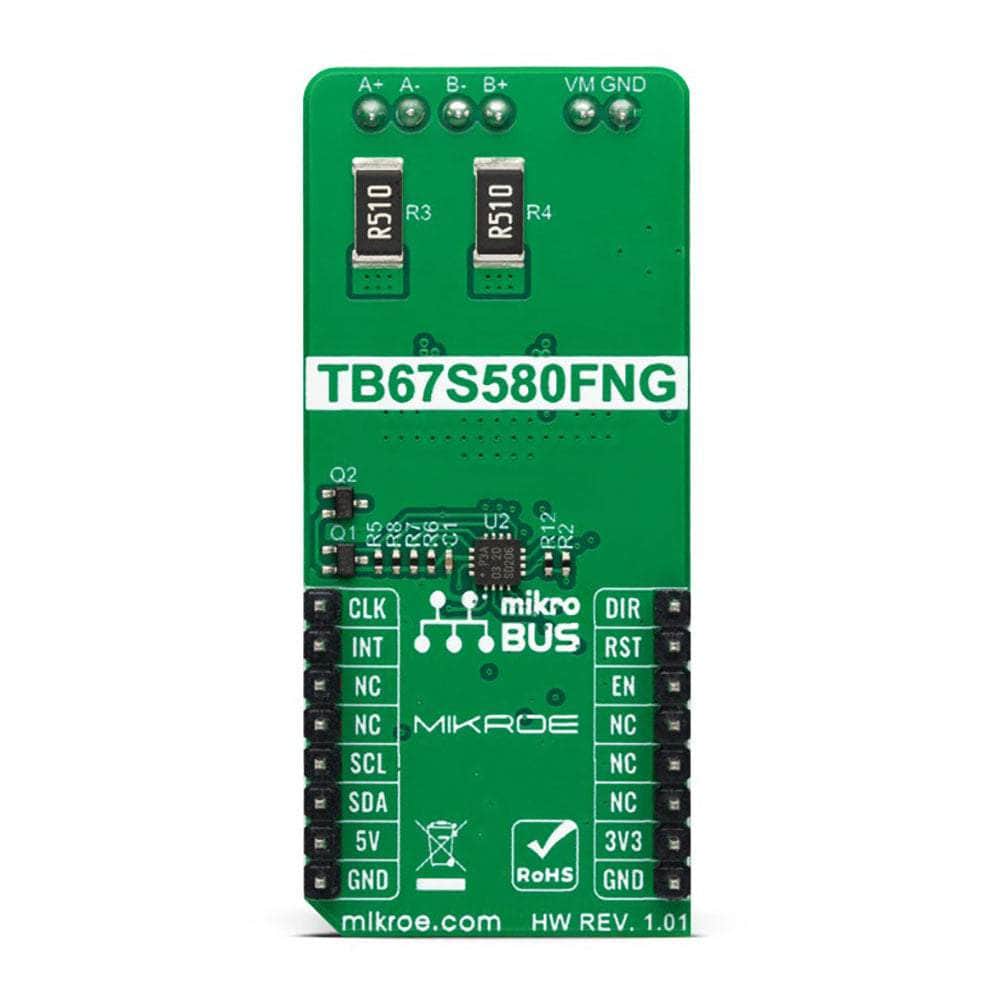

Based on the TB67S580FNG - two-phase bipolar stepping motor driver from Toshiba Semiconductor
Can be used for small stepping motors in various applications such as consumer electronics and industrial equipment
mikroBUS: I2C and GPIO Interfaces

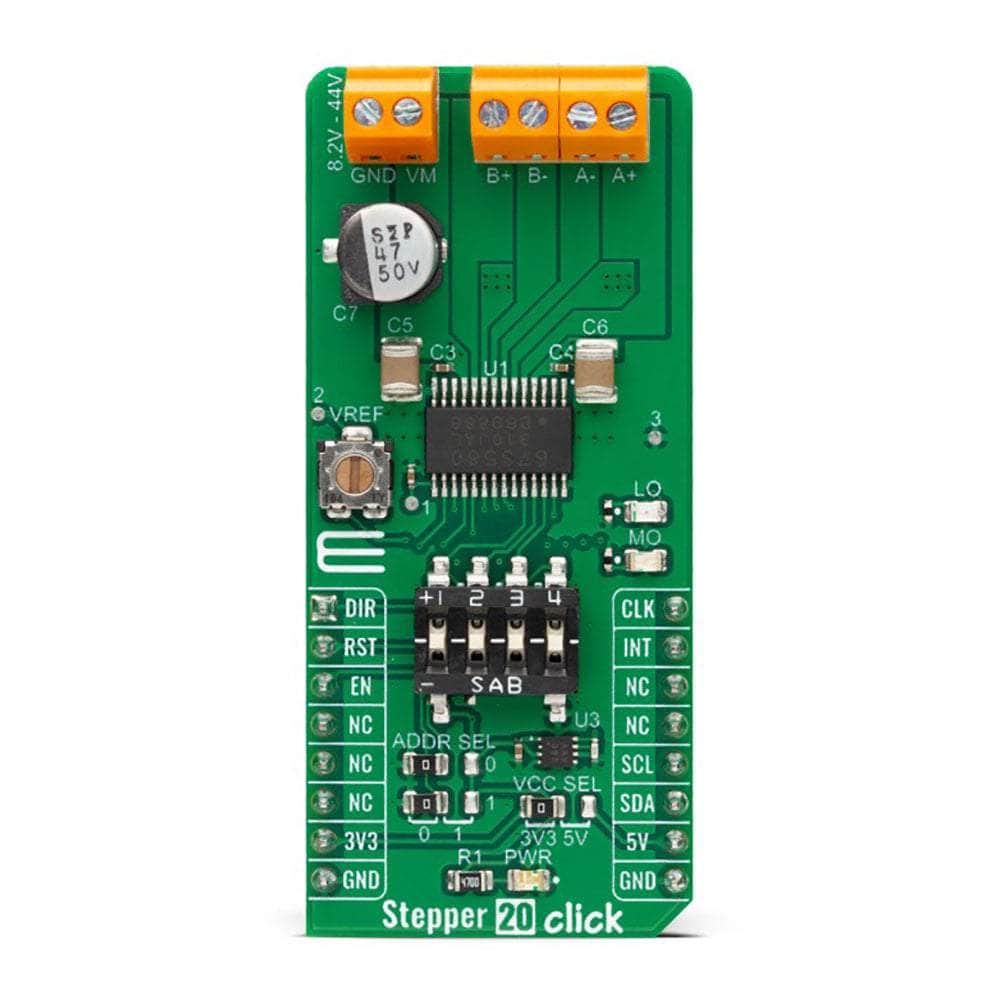

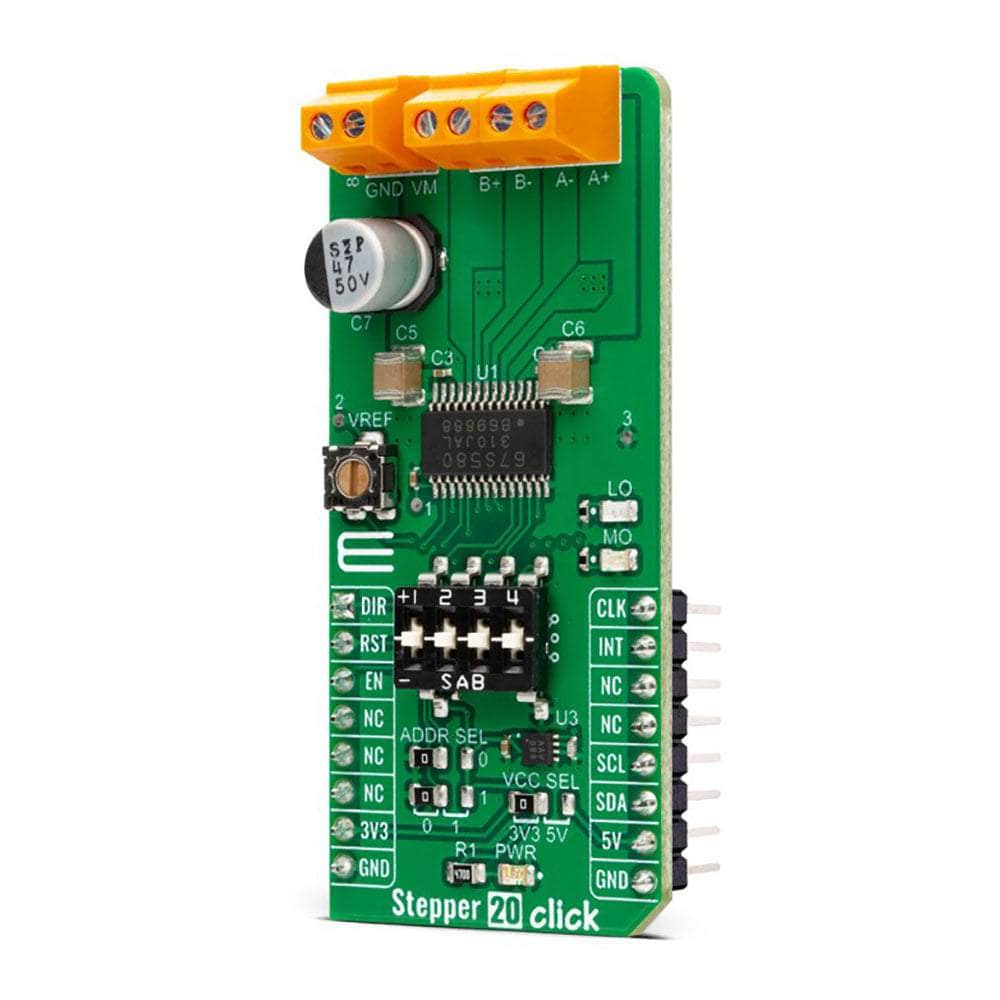

The Stepper 20 Click Board™: Compact and Powerful

Introducing the Stepper 20 Click Board™, the ultimate solution for all your bipolar stepper motor driving needs. This compact add-on board features the cutting-edge TB67S580FNG, a two-phase bipolar stepping motor driver from Toshiba Semiconductor.

Superior Performance and Control

With the Stepper 20 Click Board™, you can experience unparalleled performance and precise control over your stepper motor. The board utilizes the advanced BiCD process, ensuring optimal efficiency and reliability. It supports a wide range of step resolutions, from full to 1/32, reducing motor noise and providing smoother control.

Flexible Voltage Range and Current Capacity

No matter the power requirements of your application, the Stepper 20 Click Board™ has you covered. It operates flawlessly within a wide voltage range of 8.2V to 44V. Plus, with a maximum output current capacity of 1.28A, you can confidently drive your stepper motor without any worries.

Enhanced Features and Protection

Equipped with a decay modes selection function and multiple anomaly detection indicators, the Stepper 20 Click Board™ ensures optimal performance and safety. You can easily select the decay mode that suits your specific motor requirements, while the anomaly detection features provide real-time feedback for any potential issues.

Seamless Integration and Easy Development

Designed for convenience and simplicity, the Stepper 20 Click Board™ is fully supported by a mikroSDK-compliant library. This comprehensive library provides a range of functions that streamline software development, allowing you to focus on unleashing the full potential of your stepper motor.

Get Started Today

The Stepper 20 Click Board™ is a fully tested and ready-to-use product, making it the perfect choice for consumer electronics and industrial equipment applications. Simply plug it into any system equipped with the mikroBUS™ socket, and experience the power and precision of the Stepper 20 Click Board™ for yourself!

View full details
