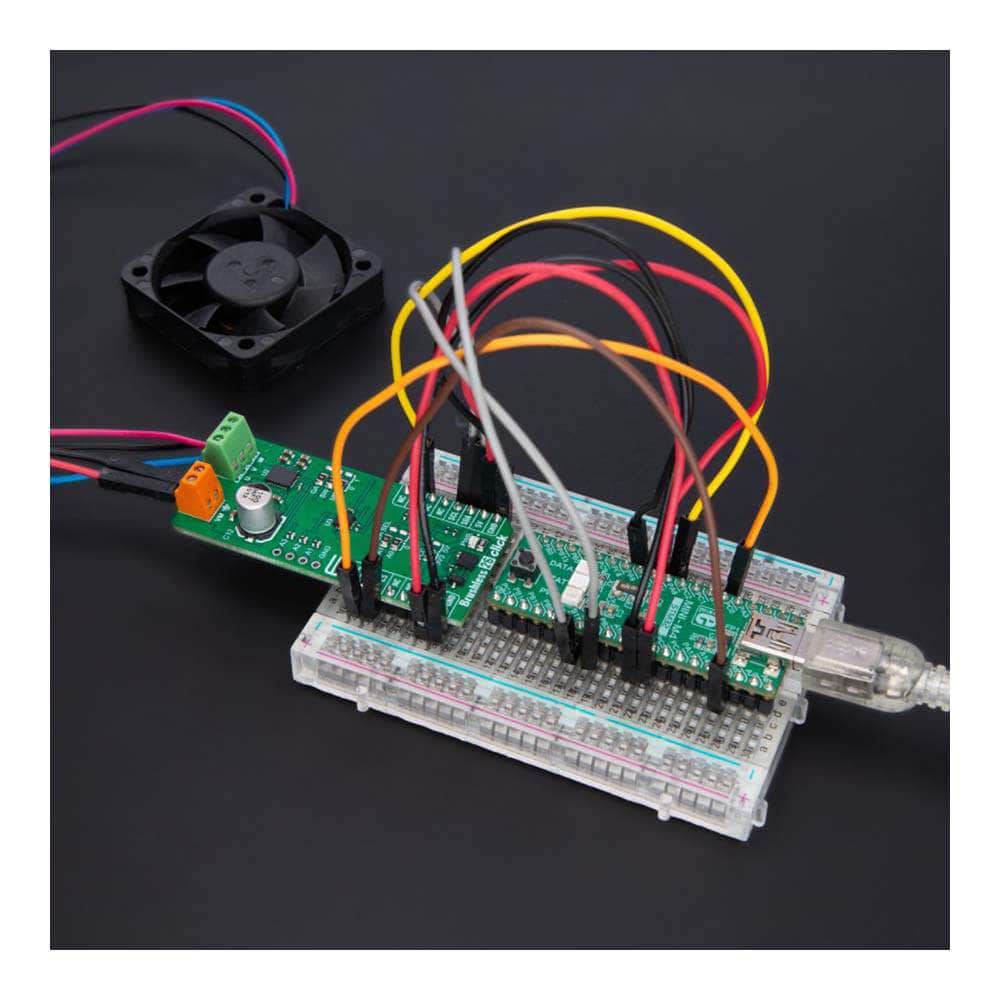

Brushless 26 Click Board

Three-Phase BLDC Motor Controller

Product variants

£22.80 inc VAT

£19.00 exc VAT

£22.80 inc VAT

£19.00 exc VAT

Sale Sold out

Shipping calculated at checkout.

Quantity

Key Features

Three-phase BLDC motor driver, configurable slew rate for EMI mitigation, programmable fain current sensing, supports up to 200kHz PWM frequency, integrated shoot-through protection, wide power supply voltage operating range, multiple control interface options, integrated current sensing, and more
Based on the DRV8317H - three-phase PWM motor driver from Texas Instruments
Can be used for the development of brushless DC (BLDC) motor modules, air purifiers, dishwasher pumps, vacuum robots, washer and dryer pumps, coffee machines, and more

Introducing the Revolutionary Click Board™: Brushless 26 Click

Unleash the Power of Efficient Motor Control in Your Applications!

Imagine a world where your devices operate optimally, your motors are controlled with precision, and your applications run with unparalleled smoothness. Welcome to the world of Brushless 26 Click Board™!

Key Features That Set Us Apart

1. Advanced Motor Driver Technology

DRV8317H: A top-tier three-phase PWM motor driver from Texas Instruments.
Integrated MOSFET Half-Bridges: Drive three-phase brushless DC (BLDC) motors efficiently and accurately.

2. Versatile Voltage Compatibility

Adaptable Voltage Ranges: Compatible with 5V, 9V, 12V, or 18V DC rails or 2s to 4s batteries.
It is optimized for Various Applications: Ideal for BLDC motor modules, air purifiers, dishwasher pumps, and more.

3. Integrated Three-Phase Current Sensing

Eliminate External Components: There is no need for an external sense resistor, ensuring a compact and efficient design.
Accurate Sensing: Ensures precise control over the motor, enhancing performance and reliability.

4. mikroSDK Compliant Library

Simplified Software Development: Leverage functions that streamline your software development process.
Ready-to-Use: This Click Board™ comes as a thoroughly tested product, ensuring reliability and efficiency in your projects.

Unleash a World of Applications

With the Brushless 26 Click Board™, you unlock a myriad of application possibilities:

Home Appliances: Enhance the efficiency of washer and dryer pumps, coffee machines, and more.
Robotic Vacuum Cleaners: Ensure smooth and reliable operation of vacuum robots.
Air Quality Devices: Power air purifiers with optimal motor control for cleaner air.
And Many More: The only limit is your imagination!

Why Choose Brushless 26 Click Board™?

Precision: Achieve meticulous control over BLDC motors.
Versatility: Suitable for a wide array of applications and industries.
Reliability: A thoroughly tested product that you can trust in your applications.
Efficiency: Integrated features that eliminate the need for additional components.

Your Path to Unparalleled Motor Control Starts Here!

Embark on a journey towards impeccable motor control and application efficiency with Brushless 26 Click Board™. Your devices deserve the best; with this innovative board, optimal performance is at your fingertips.
